Digital Headend Equipment

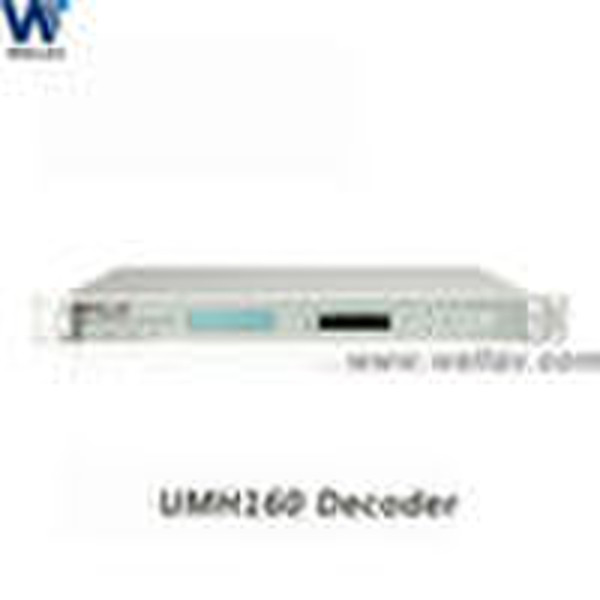

Description: UHM160 IRD is a MPEG-4/H.264 HD integrated receiver decoder( Digital Headend Equipment) with optional TS-IP mutual conversion function. It can receive signals from variable program sources including ASI, QPSK, QAM, COFDM and IP. The prolific output interface such as CVBS, YPbPr, HDMI,AES/EBU, HD/SD SDI, ASI and IP also help customers meet various requirements. UHM160 has 2 common interface slots which can decrypt multiple channels. With the LAN control and monitoring function, it is an ideal equipment for either a HD-based digital video or a IPTV head-end system. Features: 1)Fully compliant with H.264/Mpeg-4-AVC HP@L4, Mpeg-2 MP@HL, Mpeg-2 MP@ML and DVB-S/-T/-C 2)ASI transport stream input and output 3)TS/IP input and output supporting multiple multicast ports (optional) 4)2 Common Interface (CI) for descrambling major CAS including Irdeto, Viaccess, Conax,Mediaguard, Nagravision, Comvenient/Betacrypt, CTI & etc. 5)Compatible with Multi-decrypt CI Modules 6)Program filtering support 7)VBI teletext, EBU subtitle and DVB subtitle processing 8)Support PAL, NTSC and SECAM 9)YPbPr and CVBS outputs 10)HDMI output 11)AES/EBU Digital Audio output 12)HD/SD SDI video output with digital audio embedded (optional) 13)Full control via front panel or Network Management Software (NMS) 14)Software upgradeable via NMS
