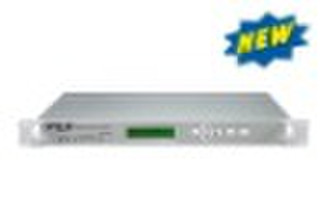

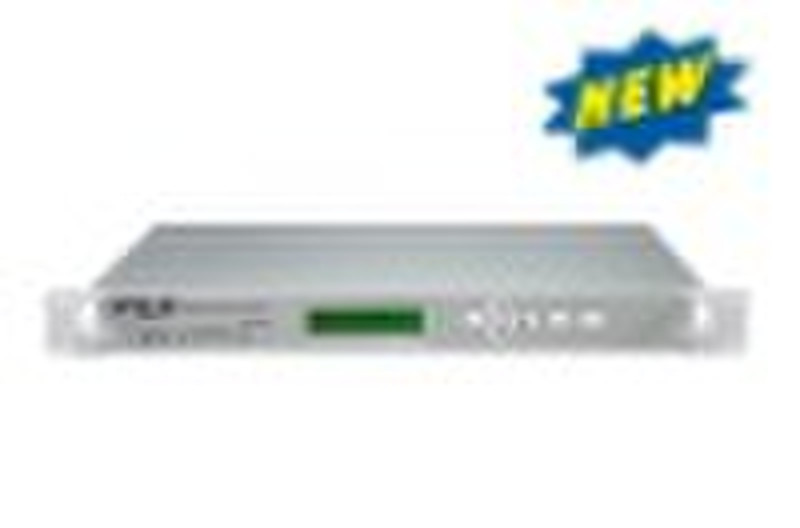

Digital Stream processor

Description: The UMH260 Stream process is Wellav’s new digital media headend equipment that integrates encoders, multiplexers and QAM modulators into one 1RU chassis. It can receive up to 6 analog inputs and 2 ASI inputs, performing real-time encoding, multiplexing and modulating work and convert the signals into one RF output. This model provides loop out for signals scrambling or additional loop in as a two-channel QAM modulator. Managed by network management software, this 1RU model not only saves space for cable operators but also delivers best video/audio quality signals cost effectively, making it an ideal equipment for cable operators to move from analog to the digital world. Feature: •Real-time encoding up to six MPEG-2 channels (1-15 Mbps) ◊Support frame/field motion estimation and DCT ◊Support TS stream PCR synchronization •3 ASI inputs: 2 digital inputs for multiplexing with six encoded channels, and one digital input directly to QAM modulation (acting as a two-channel QAM modulator) •1 ASI loop out for signal scrambling •MPTS Multiplexing of 8 TS streams ◊Program/Service Provider name setting ◊PID re-mapping and TS processing ◊PSI/SI auto-generation and processing ◊Support DVB table editing and EPG insertion ◊Private Data/teletext insertion •Managed via network management software (SNMP support) Specification: Video/Audio Encoding Video Encoding Encoding Technique:MPEG-2 MP@ML Chroma format:4:2:0 GOP configurable:I,IP,IPB, IPBB GOP size: 6-96 Video bit rate:1.0 15Mbps Modes:CBR&VBR Audio Encoding Encoding Technique:MPEG-1 Layer2 Sampling frequency:32KHz,44.1KHz,48KHz Audio mode:stereo,joint stereo,dual channel,mono Audio bit rate:32 384Kbps QAM Modulation Input ASI inputsx1 Interface:ASI Max.ASI input:72Mbps per channel Packet length:Auto detect (188/204 bytes) Output RF and RF monitor output (F-type,75Ω) Output frequency range:47 860MHz Frequency accuracy:+/-12.5KHz Output level:105 121dBuV adjustable RF monitor output level:-20dB Symbol rate:3 7Mbaud QAM constellation:32//64/128/256 PCR jitter:<+500 ns Minimum turning step size:12.5KHz Phase noise:<-75dBc/Hz@1KHz SNR(C/N=S/N):>65dB (64QAM, 6.875Mbaud) MER:>32dB (64QAM, 6.875Mbaud) EVM:<1.6% (64QAM, 6.875Mbaud) BER:< 5x10-9 (64QAM, 6.875Mbaud) Return loss:>12dB Multiplexing Outputs ASI outputx1 Packet length:188/204byte bit rate:up to 80Mbps PID number:up to 300 PMT number:up to 50 UMH260Stream processorMPEG-2 Encoder Multiplexer Modulator
