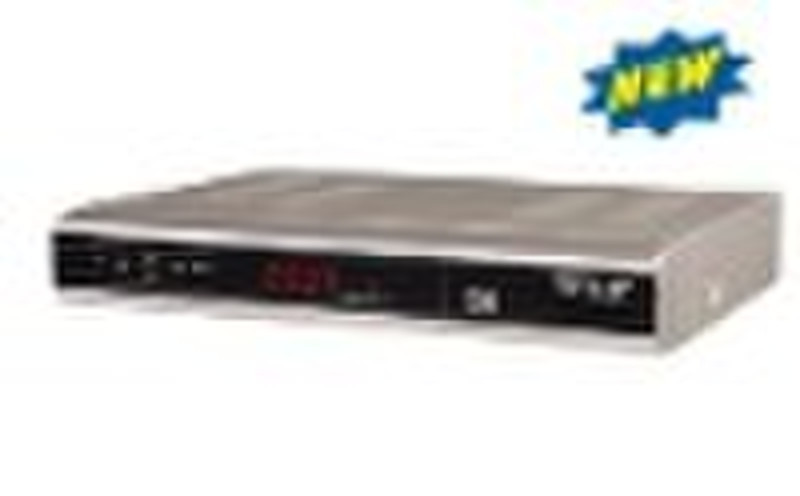

HD DVB-S2 STB

Description WHD6800S/S2 is the latest cost-effective H.264 HD/SDDVB-S2 STB model Wellav brings to the market. This receiver can support up to 1080i for HDTV with HDCP, bringing the crystal clear video to viewers. In the mean time, it supports USB 2.0 and the PVR function with external hard drive, providing flexibility for customer to record and view content at their convenience. With its affordability and a wide range of functions, WHD6800S/S2 is an ideal model for retail market where MPEG-4 DVB-S/S2 SD/HD channels are widely available. Specification Tuner and DemodulatorInput signal level :-65 -25 dBmLNB power:13/18VInput frequency:950 2150 MHzProtocol supported:lDiSEqCInput symbol rate:1.0 45 Mbps (DVB-S)Demodulation:QPSK (DVB-S)1.0 37 MHz (DVB-S2)8QPSK (DVB-S2)Input impedance:75ΩAntenna Connector:IEC F-TypeMPEG TS/AV DecodingVideo decoding: MPEG-2 MP@HL,H.264/AVCMP @ L3 Audio decoding:MPEG Layer I & II & AACMPEG-4 ASP@L5 HDAspect ratio:4:3, 16:9Sound mode:Stereo, Dual channel, AC-3Video output:NTSC / PAL/SECAMA/V output port:RCA, HDMI, Component, S/PDIFVideo solution:720X480/720X576/720p 1080i/1080pStorage:USB2.0 Host&OTGSystem resourceslCPU: lMSD7828LMain processor speed:216MHzFlash memory:8MByteDDRII:128MBytePhysical characteristicsInput voltage:AC96 250V 50/60HzPower consumption: 10W (max)Operating temperature:0°C 45°C WHD 6800S/S2
