HD IRD

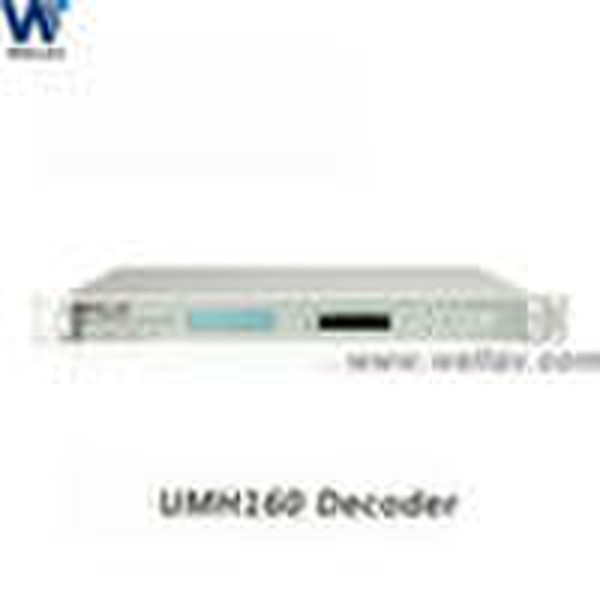

Description: UHM160 IRD is a MPEG-4/H.264 HD integrated receiver decoder with optional TS-IP mutual conversion function. It can receive signals from variable program sources including ASI, QPSK, QAM, COFDM and IP. The prolific output interface such as CVBS, YPbPr, HDMI,AES/EBU, HD/SD SDI, ASI and IP also help customers meet various requirements. UHM160 has 2 common interface slots which can decrypt multiple channels. With the LAN control and monitoring function, it is an ideal equipment for either a HD-based digital video or a IPTV head-end system. Features: 1) Fully compliant with H.264/Mpeg-4-AVC HP@L4, Mpeg-2 MP@HL, Mpeg-2 MP@ML and DVB-S/-T/-C standards 2) ASI transport stream input and output 3) TS/IP input and output supporting multiple multicast ports (optional) 4) 2 Common Interface (CI) for descrambling major CAS including Irdeto, Viaccess, Conax,Mediaguard, Nagravision, Comvenient/Betacrypt, CTI & etc. 5) Compatible with Multi-decrypt CI Modules 6) Program filtering support 7)VBI teletext, EBU subtitle and DVB subtitle processing 8) Support PAL, NTSC and SECAM 9) YPbPr and CVBS outputs 10) HDMI output 11) AES/EBU Digital Audio output 12) HD/SD SDI video output with digital audio embedded (optional) 13) Full control via front panel or Network Management Software (NMS) 14) Software upgradeable via NMS
